Product Name:YL 1200X500

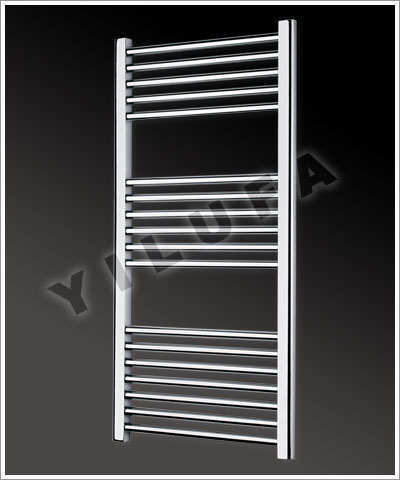

Chromium-plated straight towel radiator
Model : YL1200500
Material : Low carbon steel
Guarantee : 5 years
Horizontal tube : 22
Vertical tube : 3040mm
EN442 ROHS

Model
Length/A(MM)
Width/B(MM)
Height/D(MM)
Center Distance/C(MM)
Power(W)
YL600*450
600
450
30
400 370
YL600*500
600
500
30
450 400
YL600*550
600
550
30
500 440
YL600*600
600
600
30
550 480
YL800*450
770
450
30
400 490
YL800*500
770
500
30
450 540
YL800*550
770
550
30
500 600
YL800*600
770
600
30
550 650
YL1000*450
1000
450
30
400 950
YL1000*500
1000
500
30
450 1060
YL1000*550
1000
550
30
500 1170
YL1000*600
1000
600
30
550 1270
YL1200*450
1200
450
30
400 1010
YL1200*500
1200
500
30
450 1130
YL1200*550
1200
550
30
500 1240
YL1200*600
1200
600
30
550 1350
YL1500*450
1500
450
30
400 1350
YL1500*500
1500
500
30
450 1500
YL1500*550
1500
550
30
500 1650
YL1500*600
1500
600
30
550 1800
YL1800*450
1800
450
30
400 1460
YL1800*500
1800
500
30
450 1630
YL1800*550
1800
550
30
500 1790
YL1800*600
1800
600
30
550 1950
