Chromium-plated straight towel radiator Model : YM1200×500 Material : Stainless steel Guarantee : 5 years Horizontal tube : Φ22 Vertical tube : 30×40mm

EN442 ROHS

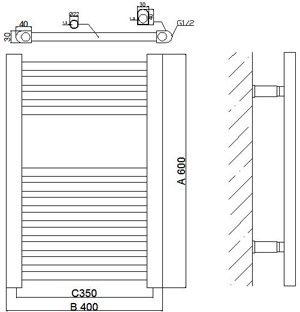

Model	Length/A(MM)	Width/B(MM)	Height/D(MM)	Center Distance/C(MM)
YM600*400	600	400	30	350
YM600*450	600	450	30	400
YM600*500	600	500	30	450
YM600*550	600	550	30	500
YM600*600	600	600	30	550
YM800*400	800	400	30	350
YM800*450	800	450	30``	400
YM800*500	800	500	30	450
YM800*550	800	550	30	500
YM800*600	800	600	30	550
YM1000*400	1000	400	30	350
YM1000*450	1000	450	30	400
YM1000*500	1000	500	30	450
YM1000*550	1000	550	30	500
YM1000*600	1000	600	30	550
YM1200*400	1200	400	30	350
YM1200*450	1200	450	30	400
YM1200*500	1200	500	30	450
YM1200*550	1200	550	30	500
YM1200*600	1200	600	30	550
YM1500*400	1500	400	30	350
YM1500*450	1500	450	30	400
YM1500*500	1500	500	30	450
YM1500*550	1500	550	30	500
YM1500*600	1500	600	30	550
YM1800*400	1800	400	30	350
YM1800*450	1800	450	30	400
YM1800*500	1800	500	30	450
YM1800*550	1800	550	30	500
YM1800*600	1800	600	30	550
