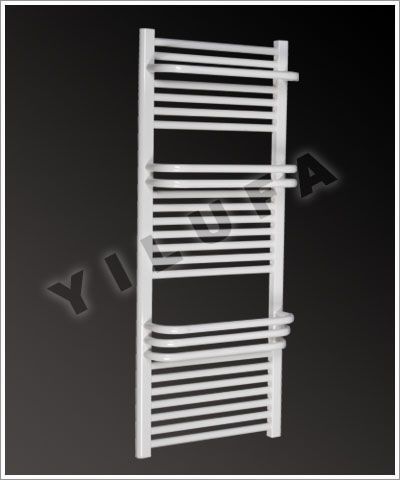

Plastic-coated towel rail radiator
Model : YD1200¡Á500
Material : Low carbon steel
Guarantee : 5 years
Horizontal tube : ¦µ22
Vertical tube : 30¡Á40mm
EN442 ROHS |
|
|

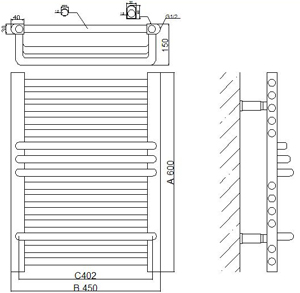

Model |
Length/A(MM) |
Width/B(MM) |
Height/D(MM) |
Center Distance/C(MM) |
POWER(W) |
|
YD600*450 |
600 |
450 |
155 |
640 |
400 |
|
YD600*500 |
600 |
500 |
155 |
710 |
450 |
|
YD800*450 |
800 |
450 |
155 |
760 |
400 |
|
YD800*500 |
800 |
500 |
155 |
840 |
450 |
|
YD1000*450 |
1000 |
450 |
155 |
960 |
400 |
|
YD1000*500 |
1000 |
500 |
155 |
1060 |
450 |
|
YD1200*450 |
1200 |
450 |
155 |
1150 |
400 |
|
YD1200*500 |
1200 |
500 |
155 |
1280 |
450 |
|
